Laboratory Vacuum Small Freeze Dryer/Lyophilizer Price

Laboratory Vacuum Small Freeze Dryer/Lyophilizer PriceProduct DescriptionDescription of freeze dryer cost:Lab equipment freeze dryer is the watery element in advance to freeze, then lifted its moisture content under the vacuum state and obtain a technical method of dry goods, freeze-dried article easy to long-term preservation, after adding water can be recovered to form and maintain the original form of biochemical characteristics. For heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme, hormone and other biological products, the freeze-drying technology can display its superiority, more suitable for laboratory the freeze-drying experiment and a small amount of production of the sample.

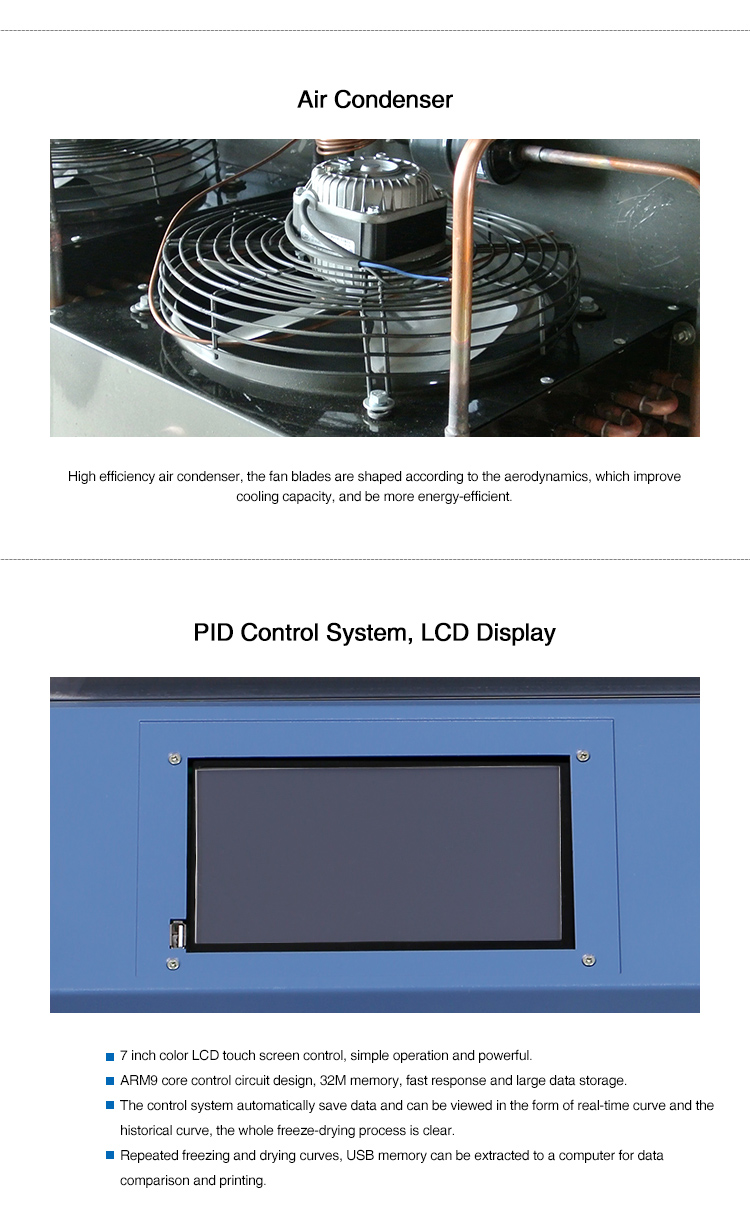

freeze dryer is divided into four kinds: normal type, gland type, manifold type, manifold pressure cap type, with the function of precool.Features of freeze dryer cost:(1) The mini lyophilization machine machine adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap .(2) 7- inch TFT LCD touch screen control system, easy to operate , and powerful .(3) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data .(4) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying process clear.(5) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .(6) connected to a vacuum Pump and a host of international standards KF quick connector , simple and reliable.(7) The machine can store multiple freeze-drying curve, and extracted with U-disk data to a computer, use the PC software to view and print a variety of options in the computer.(8) configuration inflation valve , rechargeable dry inert gas.

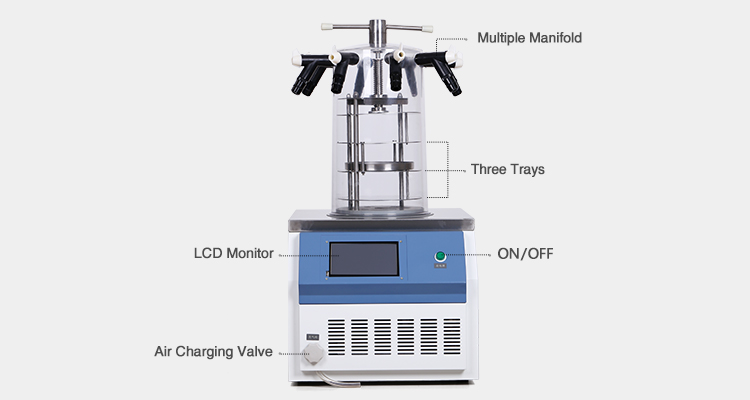

Main structure and Name

1. Cold trap

2.  Seal ring

3. Work surfaces

4. Vacuum pumping interface

5. Waterproof (inflow) valve

6. The control (display) panel

7.  Switch

8. Power supply

9. The vacuum pump power source

10.Insurance

 ***Click Here for More Details*** Technical Parameters of freeze dryer cost:

Scientz-10N	Ordinary	Top-Press	Ordinary Multi-Manifolds	Top-Press Multi-Manifolds
No-load     Temperature	<-56℃	<-56℃	<-56℃	<-56℃
Freeze Area	0.12 m2	0.08 m2	0.12 m2	0.08 m2
Plate Load    Capacity	1.5 L	1 L	1.5 L	1 L
Ability to    Capture Water	3Kg	3Kg	3Kg	3Kg
Vacuum Degree	<10Pa	<10Pa	<10Pa	<10Pa
Machine    Dimension	W450×D580× H(380+450) mm	W450×D580× H(380+450) mm	W450×D580× H(380+450) mm	W450×D580× H(380+450) mm
Sample Tray Size	4×Φ200mm	Ø 3×180 mm	4×Φ200mm	Ø 3×180 mm
Power	950W	950W	950W	950W
Power Supply	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
Interlayer spacing	70 mm	70 mm	70 mm	70 mm
Cold trap size	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm	Ø215×160 mm

  ***Click Here for More Details***Packaging & Shipping Our ServicesCompany InformationKeda Machinery and Instrument Equipment Co.,Ltd.Our company sells recycled water vacuum pumps, rotary evaporators,thermostatic magnetic stirrers, glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets. With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.FAQ1.What's the minimum order quantity?One set at present.2.What kind of payment term do you accept?Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.3. How will you delivery these goods?It will be decided according to your quantity. Normally we will choose International Express,  Air and sea.

Contact us if you need more details on Vacuum Freeze Dryer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Lyophilizer、Lyophilizer Price. If these products fail to match your need, please contact us and we would like to provide relevant information.
