Multifunctional Vacuum Freeze Dryer Polytype

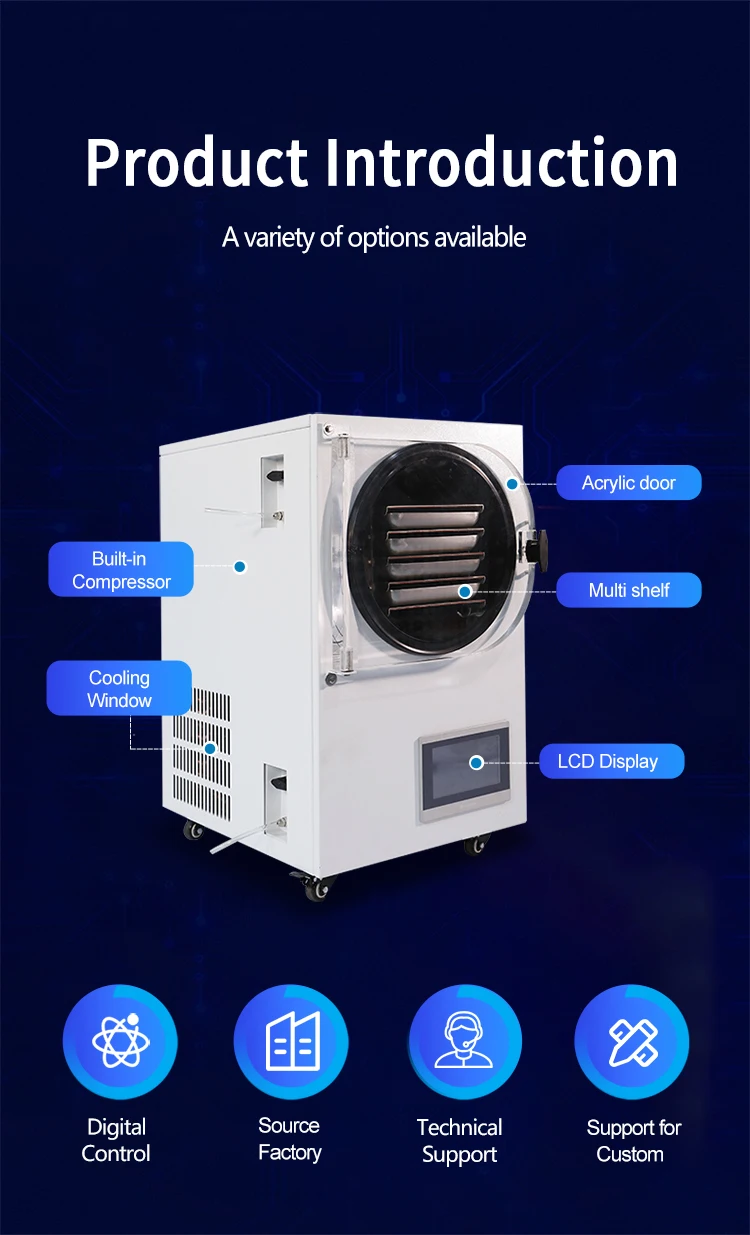

                        Multifunctional Vacuum Freeze Dryer Polytype     Product Description Characteristics   ♦Accord with international standards of Green environmental friendly. ♦7" True~color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve; ♦U disk Can storage lyophilized data; ♦ Upload software can print curve; ♦ Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data; ♦ Large opening trap, no coil inside, with samples pre-freeze function ♦ Imported refrigeration compressor, low noise ♦ Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean ♦ Transparent Bell type drying room, secure and ocular ♦ Stainless steel sample holder, common sample plate spacing adjustable ♦ Small size and easy to operate ♦ Nitrogen inflation valve within.

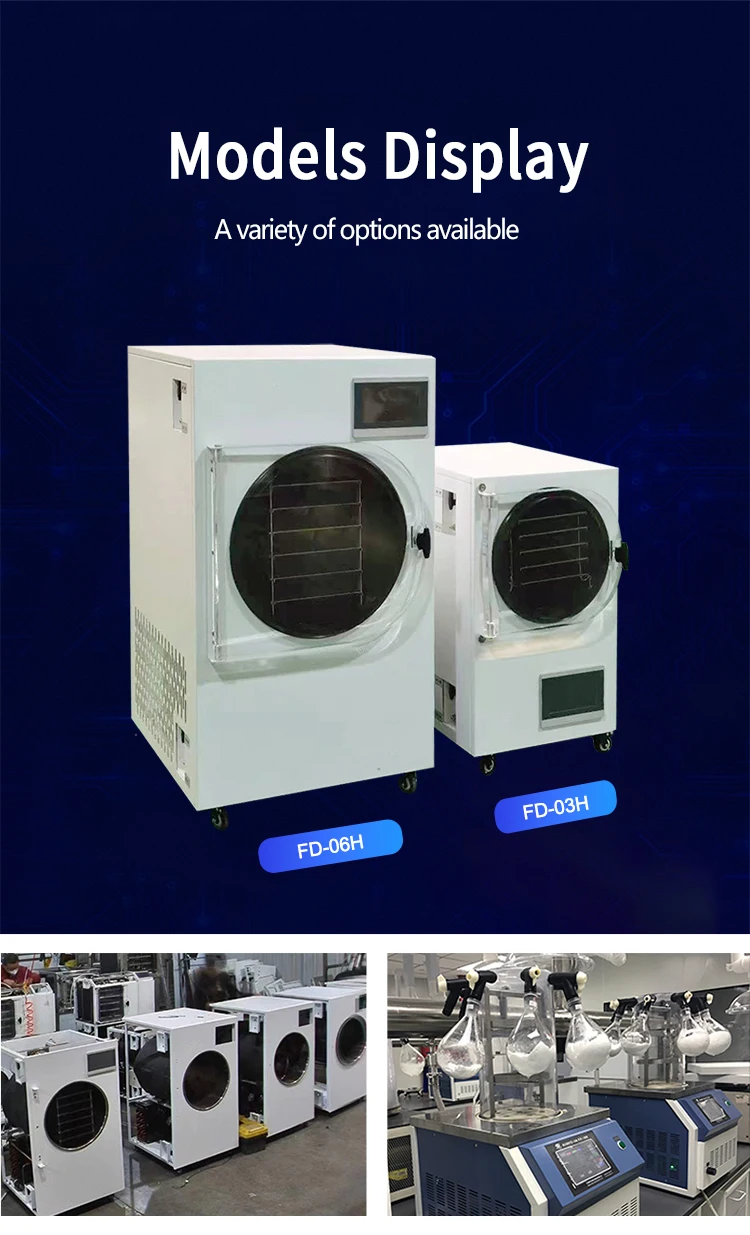

Model	FD-03H	FD-06H	FD-10H	FD-50H	FD-100H
Drying area(m2)	0.3	0.56	1.18	5	/
Tray size(mm)	205*385	220*510	295*800	/	/
Tray numbers	4	5	5	8	7
Capacity(kg)	3	6	10-15	50	100
Shelf size(mm)	385*205	/	/	412*1400	508*2400
Rated power(kW)	1.2	2.3	3.3	15	25
Voltage(V)	220-240V  50-60Hz			380-440V  50-60Hz
Condenser temperature(°C)	≤-50			≤-50 or ≤-45
Vacuum(Pa)	<15
Machine size(mm)	450*610* 760	620*694* 1098	660*990* 1470	886*1804*1539	/
Weight(kg)	120	130	150	400	1000

  Company Information Company introduction: Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, Jacketed Glass Reactor, Single Layer Glass Reactor, circulating water vacuum Pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), Vacuum drying oven, Blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil,Egypt etc. countries and our customers have been fully affirmation.   Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America Please click on the picture:

   Our Services Why choose us!
-with 6 years foreign trade,and over 30 years domestic trade in China.
-we are professional mancufacturer in chemical industry!
-our main product is rotary evaporator, glass reactor, vacuum drying oven and their matched equipments.
-our customers are all over the world, mainly spread in America, Canada, India,and so on. Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan           Multifunctional Vacuum Freeze Dryer Polytype Multifunctional Vacuum Freeze Dryer Polytype Multifunctional Vacuum Freeze Dryer Polytype

Contact us if you need more details on Freeze Dryer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Vacuum Freeze Dryer、Vacuum Freeze Dryer Polytype. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Drying Machine Series > Freeze Dryer
