High Quality Vacuum Drying Oven for Chemistry
Product Description
Brief Introduction (Vacuum Drying Oven) | ⇒Cuboids chamber maximizes the effective cubage. Microprocessor controller for temperature ensures a precise and reliable control. |
⇒Dual-layer bulletproof toughened glass door ensures absolutely clear observation on objects in chamber. | |
⇒Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven. | |
⇒The chamber is made of stainless steel(or wire-drawing sheet),which allows a durable service. | |
⇒Storage, heating, testing and drying are all in an environment without oxygen or filled with inert gases, which ensures no oxidation. | |
⇒Minimum heating time is over 50% less than that of traditional vacuum drying oven. | |
Brief Introduction (Our Company) | ⇒Zhengzhou Keda Machinery and Instrument Equipment Co.Ltd is designed to serve the lab and chemical researchers and University scientists and wholesalers for more than 30years. We service the clients from alibaba for more than 6 years in North America,South America, and East Asia and earn good reputation. |
⇒We have a professional technology team with 50 people and professional checking team with 20 people to guarantee the quality of our products before they go out. We also have sales team with 20 people to provide pre sale and after sale real time consultation by e-mail or telephone. |

![]() | Built in Chip(Chip Temperature Control)
⇒ Intelligence Timing Accurate Temperature control |
Cold Rolled Steel Sheet
⇒Cold rolled steel sheet makes the chamber not deform in the vacuum condition and extends service life. The cotton insulation not only prevents heat loss inside, but also ensures the shell is not hot
| ![]() |
![]() | Heating Tube
⇒ Heating around the inwall, more uniform, no overshoot, nonflammable, anti-explosion and more dafe stainless steel material, non deformation and long service life |
Microcomputer Temperature Control
⇒Temperature controller with timer fuction to ensure precise and reliable temperature control Built in chip, precise temperature control(Accuracy±0.1℃ easy operation reliable performance display direactly and easy operation | ![]() |
![]() | ![]() | ![]() |
Switch | Double Layer Explosion-proof Glass | Silicon Rubber Strip |

Model | DZF-6050 |
Power Supply | 220V/50Hz |
Shell Material | Spray-paint Anti-corrosion |
Liner Material | 304 Stainless Steel |
Temp. Range | RT+10~200°C |
Max. Vacuum Degree | 0.098 Mpa |
Temp. Stability | ±1.0°C |
Temp.Analysis | 0.1°C |
Working Temp. | +5~40°C |
Input Power (W) | 1400 |
Chamber Capacity (L) | 55 |
Inner Dimension (W*D*H, mm) | 400*400*345 |
Overall Dimension (W*D*H, mm) | 710*580*530 |
Shelves (Pcs) | 2 |
Time Range | 1~9999 min |
Optional Configuration | EX |





Dear friend, different models hold different number shelves like 1, 2, 3, 4 shelves.
2. What is your max temperature?
Dear friend, Max 250 degree C, 200 degree C is normal.
3. What kind of size do you have?

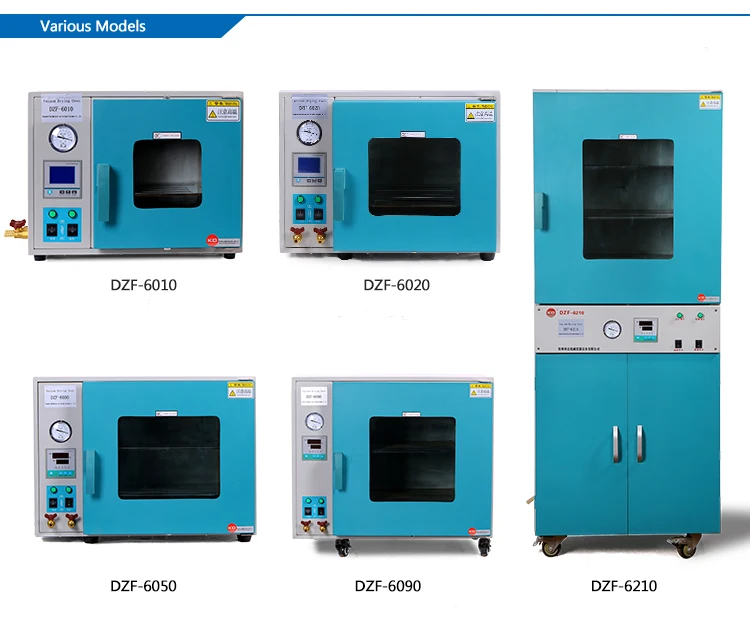

Dear friend,we have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft) and 91L(3.2 cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4. Can you make 110V versions?
Dear friend,yes, we can make it.
5. How is your oven heated?
Dear friend, there are many heating electric pipes surround the chamber inside, to keep the high temperature.
6. Could you make the temperature shows in Fahrenheit?
Dear friend, we can make it.
