DHG9240 Benchtop Hot Air Circulating Soil Drying Oven
Product Description
DHG9240 Benchtop Hot Air Circulating Soil Drying Oven Product DescriptionApplication: The drying oven is designed to do drying test, baking test, heat treatment test, disinfecting test, etc. It can be filed with inert gas and dry some ingredient complex materials quickly. Normally the oven is widely used in the fields of Electrics, Electronics, Instruments, Materials, Education, Medicine, chemical industry or other Scientific Research Organizations and Production Units.
Features:1, Micro-computer control with timing.
2, Inside the oven is made of mirror argon arc welding stainless steel.
3, Outside the oven made from high quality steel, attractive appearance, novel.
4, Adopt Microcomputer PID temperature controller with Over temperature deviation protection and digital display.
5, Timing function, precise and reliable temperature control accuracy(Intelligent LCD programming temperature controller optional).

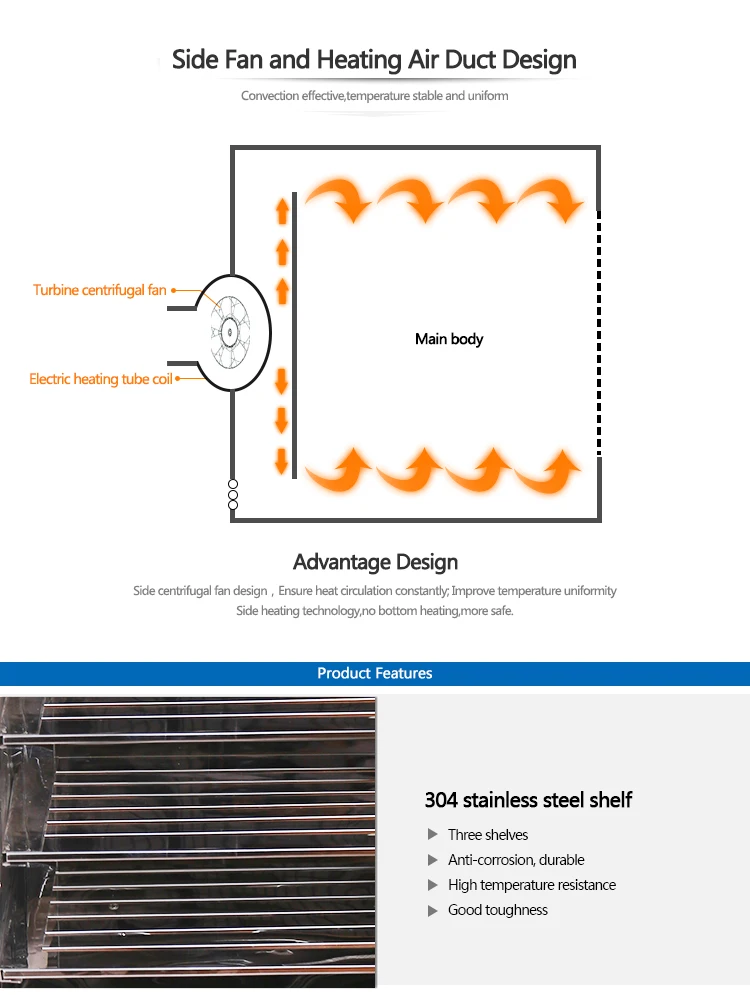

6, Heated air circulation system consists of air blower and suitable air flue.
7, Continuous operation at high temperatures, Improve temperature uniformity.
Technical Parameter
Vacuum drying oven Models
Company InformationCompany introduction:Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, Jacketed Glass Reactor, Single Layer Glass Reactor, circulating water vacuum Pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, Blast drying oven, Freeze Dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation. Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South AmericaPlease click on the picture:
FAQ1, How many shelves does your oven can hold?
Different models hold different amounts of shelves like 1, 2, 3, 4, 5 shelves. That will be according to the models.
2, What is your max temperature?
Max 250 degree C, 200 degree C is normal.
3, What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft) and 91L(3.2 cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4, Can you make 110V versions?
Yes, we can make it.
5, How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6, Could you make the temperature shows in Fahrenheit?
Yes, we can make it.Our Services
Warranty & Service
1. One year warranty service after the product was sold.
2. In the warranty period, users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. Please read the product manual carefully before using this product. Operating the product strictly according to the operation method.
5. Users encounter problems when using our products , pls contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.Tel: +86-371-53780197
Fax: +86-371-60920178
http://www.kdinstrument.com/ http:/// The price can be negotiable, worthy price u deserve! contact us to know most favorable price! Contact us if you need more details on Soil Drying Oven. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Circulating Soil Drying Oven、Hot Air Circultating Soil Drying Oven. If these products fail to match your need, please contact us and we would like to provide relevant information.
Features:1, Micro-computer control with timing.2, Inside the oven is made of mirror argon arc welding stainless steel.
3, Outside the oven made from high quality steel, attractive appearance, novel.
4, Adopt Microcomputer PID temperature controller with Over temperature deviation protection and digital display.
5, Timing function, precise and reliable temperature control accuracy(Intelligent LCD programming temperature controller optional).
6, Heated air circulation system consists of air blower and suitable air flue.
7, Continuous operation at high temperatures, Improve temperature uniformity.

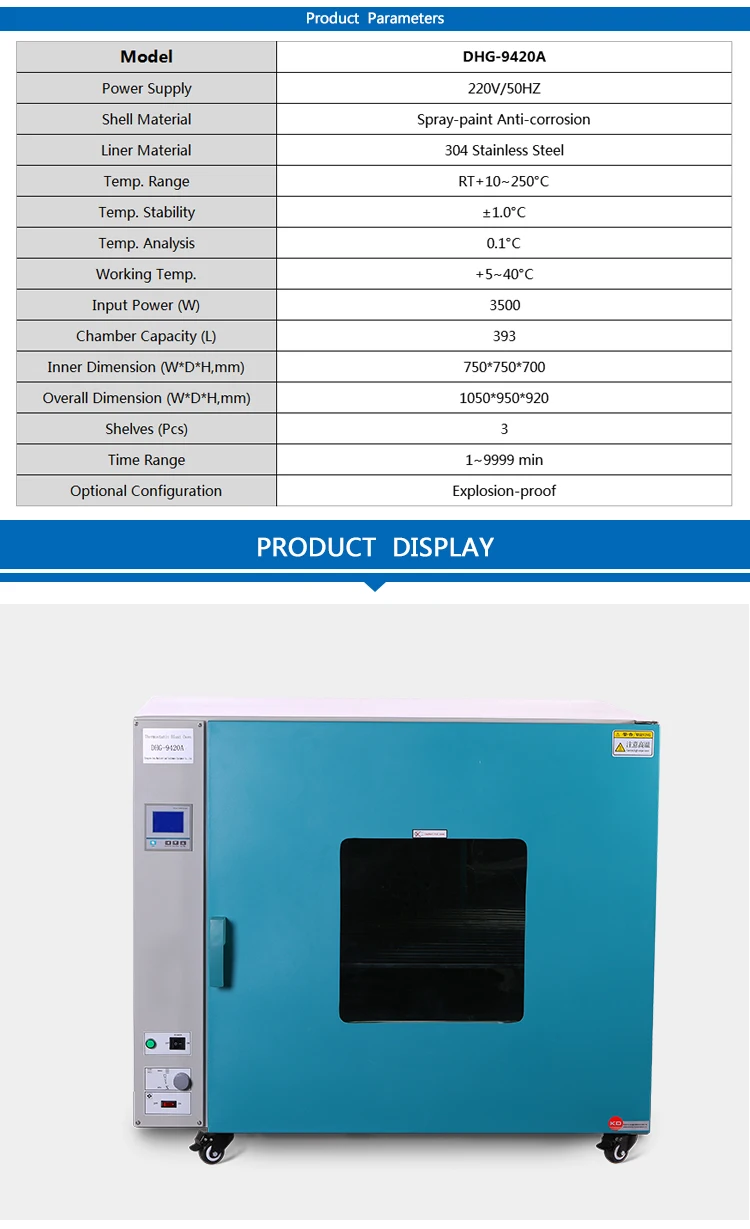

Technical Parameter | Model | DHG-9030(A) | DHG-9140(A) | DHG-9240(A) | DHG-9420(A) | DHG-9620(A) |
| Voltage | 220V/50Hz | 380V/50Hz | |||
| Input Power | 850W | 1550W | 2050W | 3500W | 4000W |
Temperature Control | RT+10~200℃ /RT+10~250℃ | ||||
| Temperature Resolution | 0.1/±1℃ | ||||
| Volume | 30L | 136L | 220L | 420L | 620L |
| Work Temperature | +5~40℃ | ||||
| Internal Size | 340*320*320mm | 550*450*550mm | 600*500*750mm | 640*585*1355mm | 840*600*1355mm |
| Standard Shelves | 2Pcs | 3Pcs | 4Pcs | ||
| Material | Stainless steel | ||||
Vacuum drying oven Models
Company InformationCompany introduction:Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, Jacketed Glass Reactor, Single Layer Glass Reactor, circulating water vacuum Pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, Blast drying oven, Freeze Dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation. Factory Size: 1,000-3,000 square metersYear Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South AmericaPlease click on the picture:
FAQ1, How many shelves does your oven can hold?Different models hold different amounts of shelves like 1, 2, 3, 4, 5 shelves. That will be according to the models.
2, What is your max temperature?
Max 250 degree C, 200 degree C is normal.
3, What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft) and 91L(3.2 cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4, Can you make 110V versions?
Yes, we can make it.
5, How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6, Could you make the temperature shows in Fahrenheit?
Yes, we can make it.Our Services
Warranty & Service1. One year warranty service after the product was sold.
2. In the warranty period, users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. Please read the product manual carefully before using this product. Operating the product strictly according to the operation method.
5. Users encounter problems when using our products , pls contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.Tel: +86-371-53780197
Fax: +86-371-60920178
http://www.kdinstrument.com/ http:/// The price can be negotiable, worthy price u deserve! contact us to know most favorable price! Contact us if you need more details on Soil Drying Oven. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Circulating Soil Drying Oven、Hot Air Circultating Soil Drying Oven. If these products fail to match your need, please contact us and we would like to provide relevant information.
